Lattice Arena DS

Lattice Arena on a dual-screen handheld: the same programmable arena for LLM robots, watched on a top screen and driven from a touch screen with a D-pad, face buttons, Select and Start.

Previewin your browser

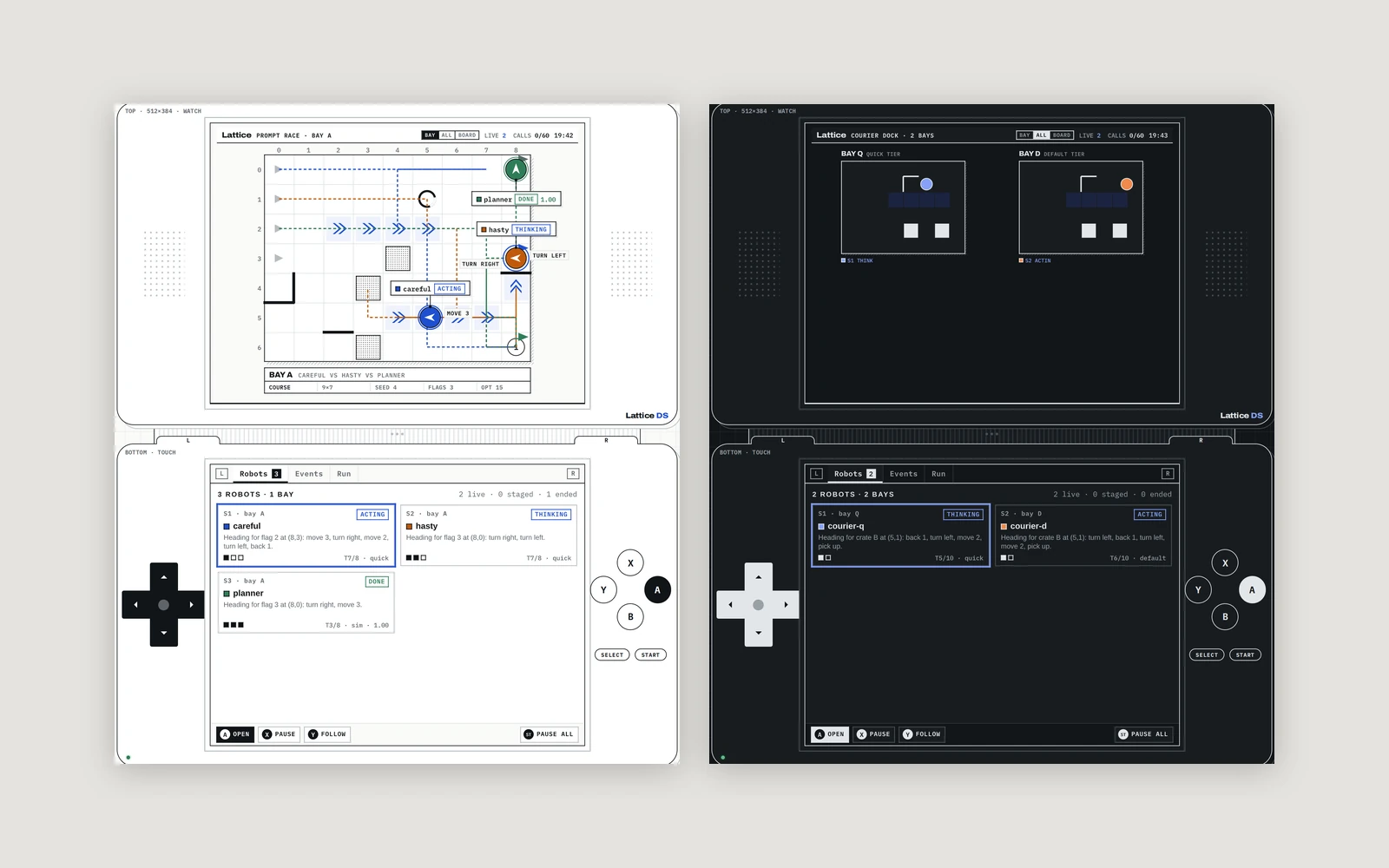

Two Lattice DS handhelds side by side: a light one running the Prompt race with routes on the top screen and robot cards on the bottom, and a dark one running Courier dock

In early access for subscribers until 22 November 2026. Subscribe to run it now.

Subscribe →

The Lattice Arena on a dual-screen handheld. The same programmable arena for LLM robots, with the same script, presets and coach, but the floor is drawn on two small screens: the top one watches the robots, the bottom one is a touch screen with a D-pad and A/B/X/Y, L/R, Select and Start buttons around it.

  • Two screens: the top screen shows one bay, all bays side by side, or a board with the leaderboard, events and Claude calls; Select (or Backspace) switches between them.
  • Touch and buttons: the bottom screen has Robots, Events and Run tabs, switched with L and R, and every button is mapped to the keyboard (arrows, X, Z, S, A, Q, W, Enter).
  • Run settings on the device: speed, bubbles, trails, top-screen mode, how many Claude calls run at once and the call budget, all from the Run tab.
  • Same arena underneath: boards from a seed or by hand, agents built from prompt sections and tools, hooks, forks, rubric scoring, and the coach panel beside the device.
  • Drawn as SVG: both screens are rendered by a small layout engine that lays out every glyph itself from the loaded fonts, so they look the same in every browser.

It shares about half its code with Lattice Arena: the script language, robot runtime, storage, coach and the ten presets (Hello robot, Prompt race, Sim sandbox, Courier dock, Steering and hooks, Custom tools and slots, Coached robot, Fork a counterfactual, Judge panel, GEPA, from parts). What differs is the view: Lattice Arena draws a three.js 3D floor you can orbit, with a plan minimap; the DS version has no three.js and puts everything on the two handheld screens.

Fonts: the screens load IBM Plex Mono (@ibm/plex-mono 1.1.0), Liberation Sans (from pdfjs-dist 4.10.38), Archivo and Archivo SemiExpanded ExtraBold (Omnibus-Type/Archivo on GitHub), Inter (inter-ui 3.19.3) and DejaVu Sans and Sans Mono (dejavu-fonts-ttf 2.37.3) from cdn.jsdelivr.net when the app starts; IBM Plex, Liberation Sans, Archivo and Inter are under the SIL Open Font License, and DejaVu under the Bitstream Vera licence. Text on the screens is laid out with opentype.js.

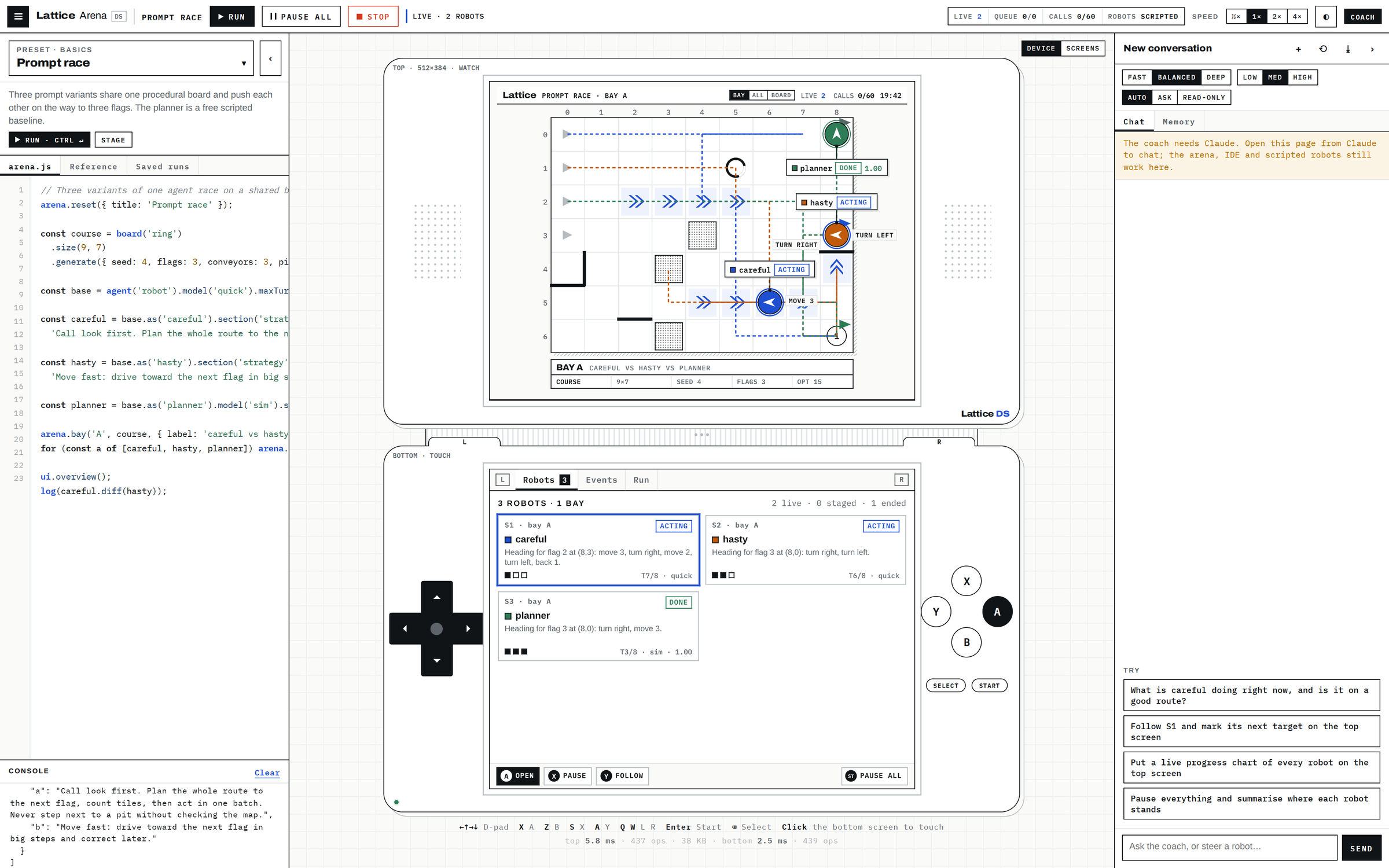

The full Lattice Arena DS interface: the arena.js script on the left, the dual-screen handheld in the middle with its D-pad and A/B/X/Y buttons, and the coach panel on the right
The full Lattice Arena DS interface: the arena.js script on the left, the dual-screen handheld in the middle with its D-pad and A/B/X/Y buttons, and the coach panel on the right

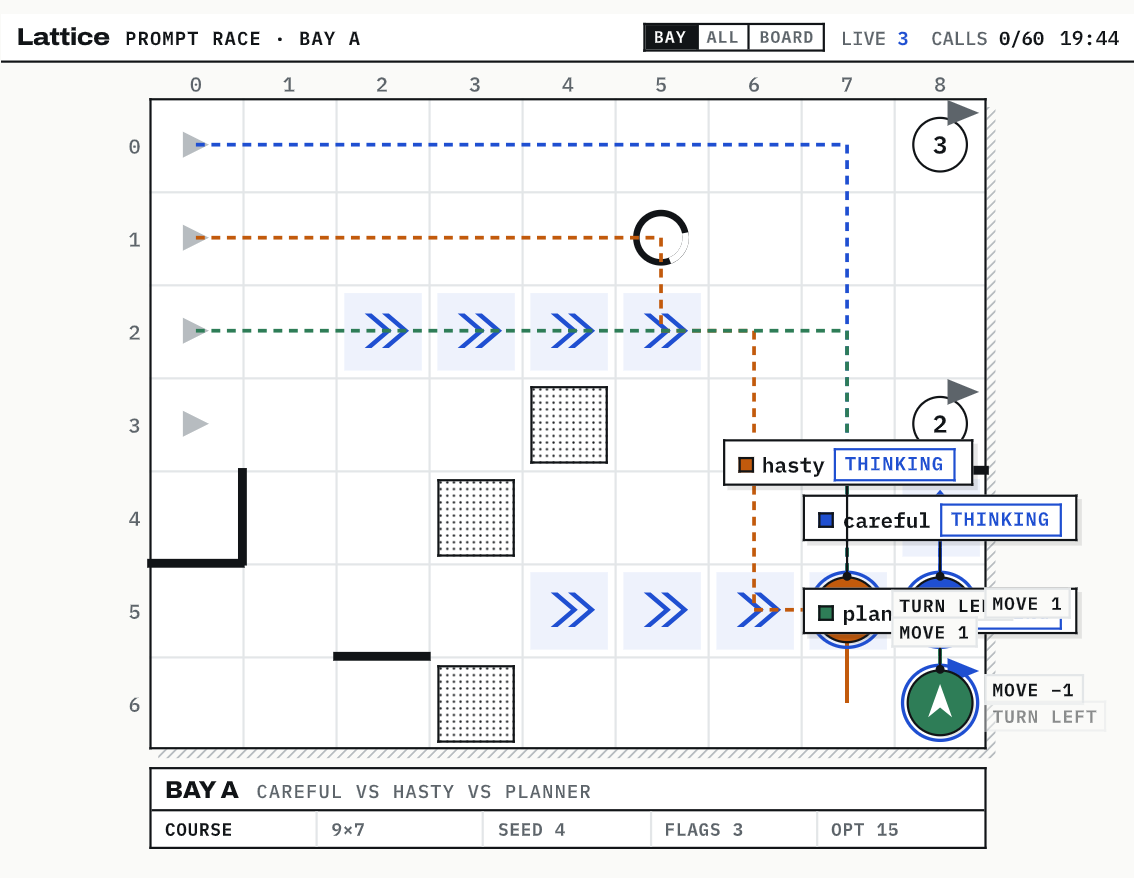

The top screen during the Prompt race: three robots on a 9×7 grid of belts and pits, with dashed routes towards the numbered flags
The top screen during the Prompt race: three robots on a 9×7 grid of belts and pits, with dashed routes towards the numbered flags

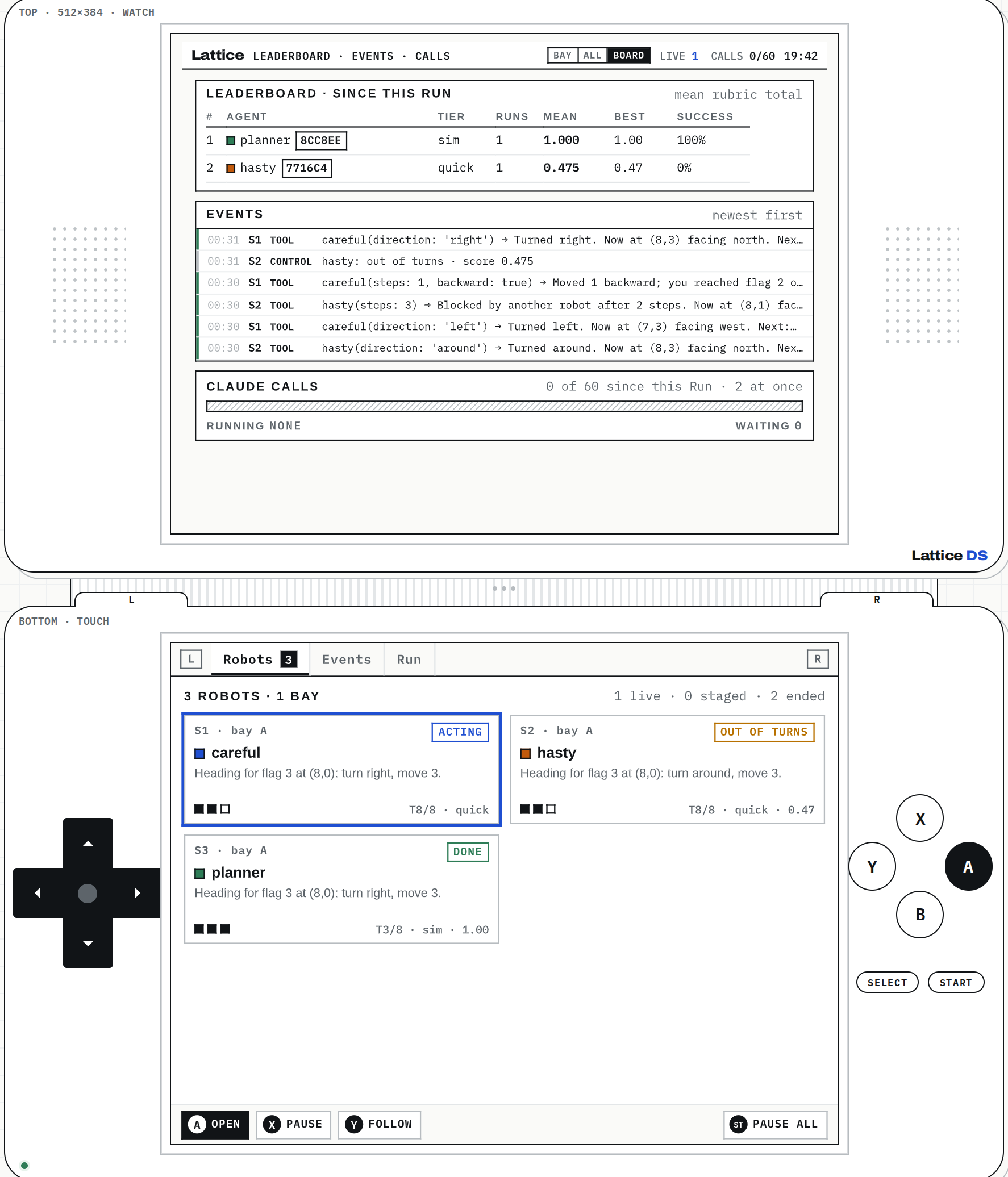

The handheld with the top screen switched to the board view: a leaderboard, the newest events and the Claude call counter
The handheld with the top screen switched to the board view: a leaderboard, the newest events and the Claude call counter

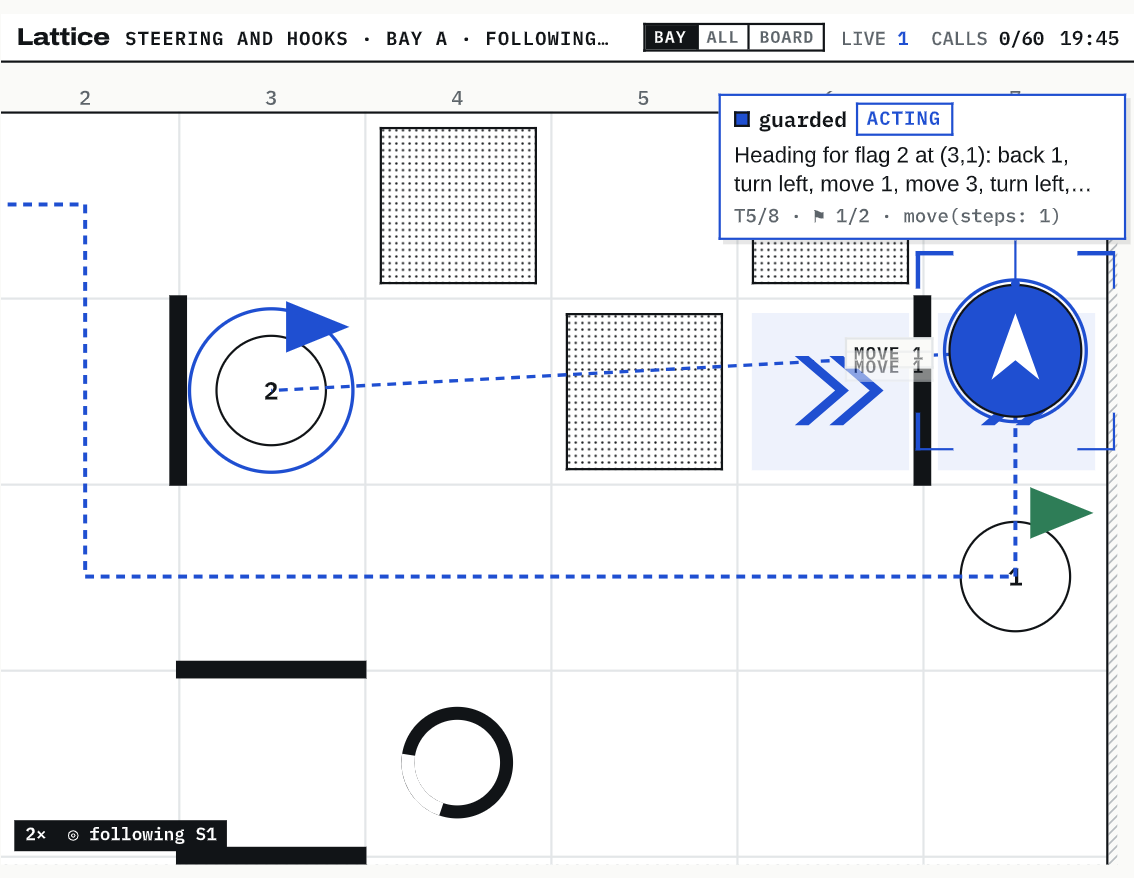

The top screen zoomed in on one robot under the Steering and hooks preset, with its status bubble and its route to the next flag
The top screen zoomed in on one robot under the Steering and hooks preset, with its status bubble and its route to the next flag

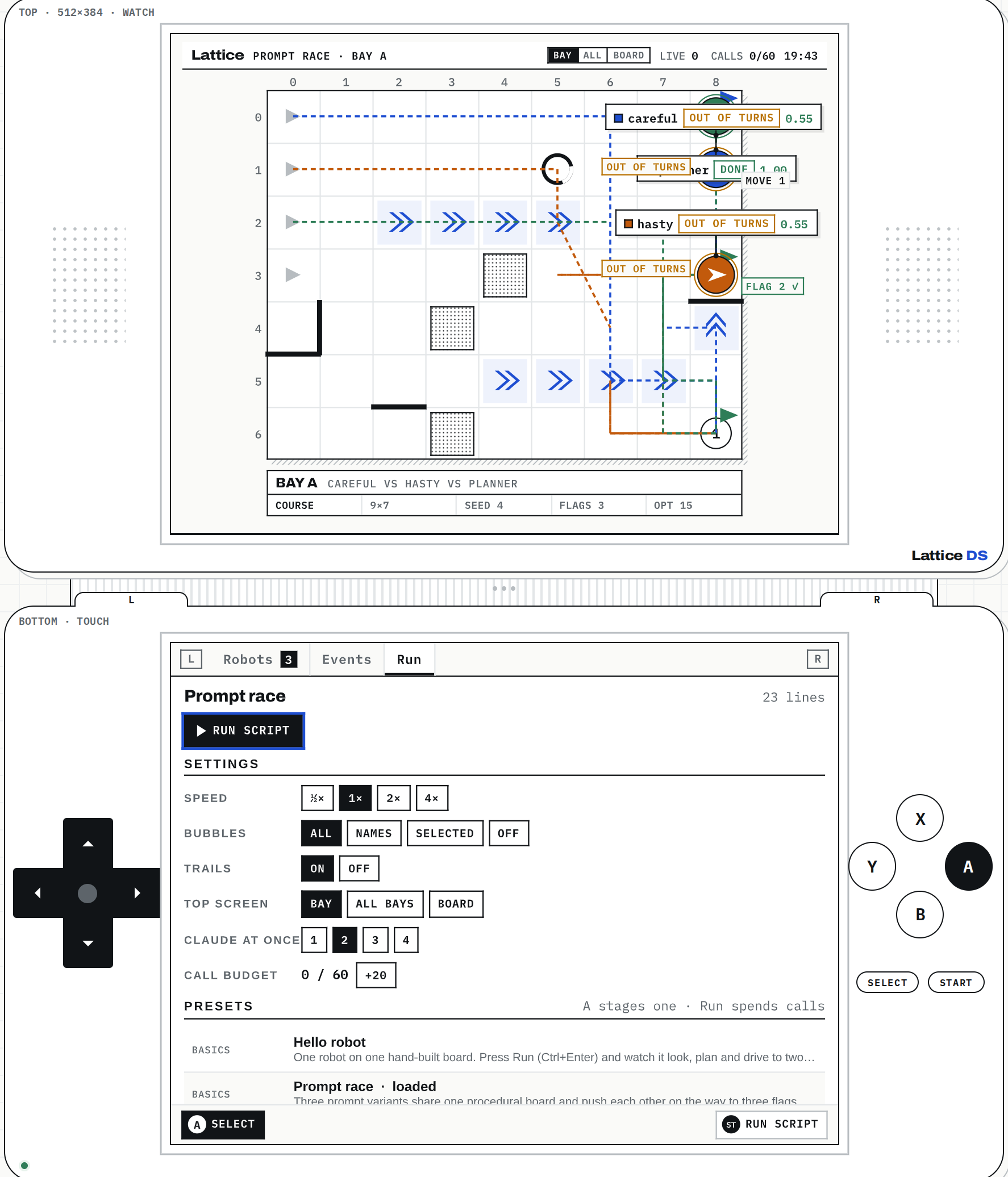

The Run tab on the bottom screen: run, pause and stop buttons, settings for speed, bubbles, trails, top-screen mode, Claude calls at once and the call budget, and the preset list
The Run tab on the bottom screen: run, pause and stop buttons, settings for speed, bubbles, trails, top-screen mode, Claude calls at once and the call budget, and the preset list

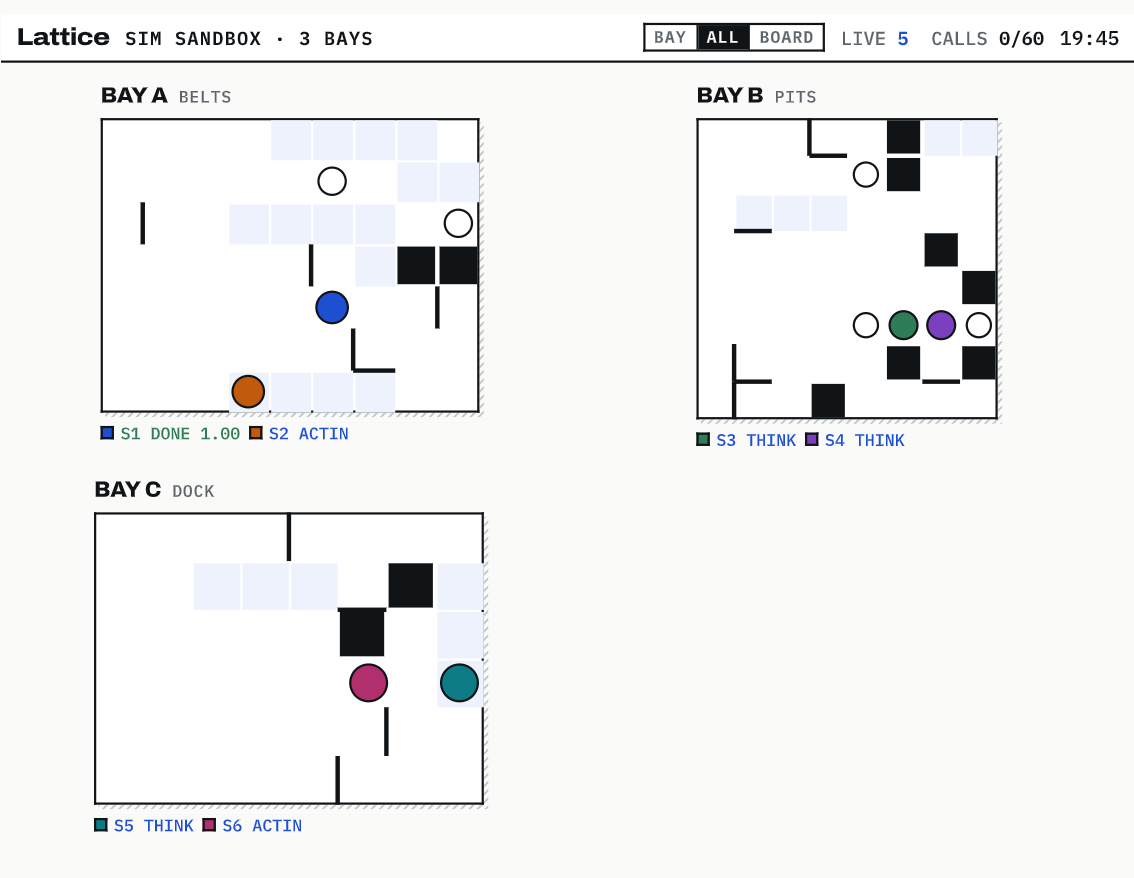

The top screen showing all three Sim sandbox bays side by side: belts, pits and a dock, with six robots
The top screen showing all three Sim sandbox bays side by side: belts, pits and a dock, with six robots

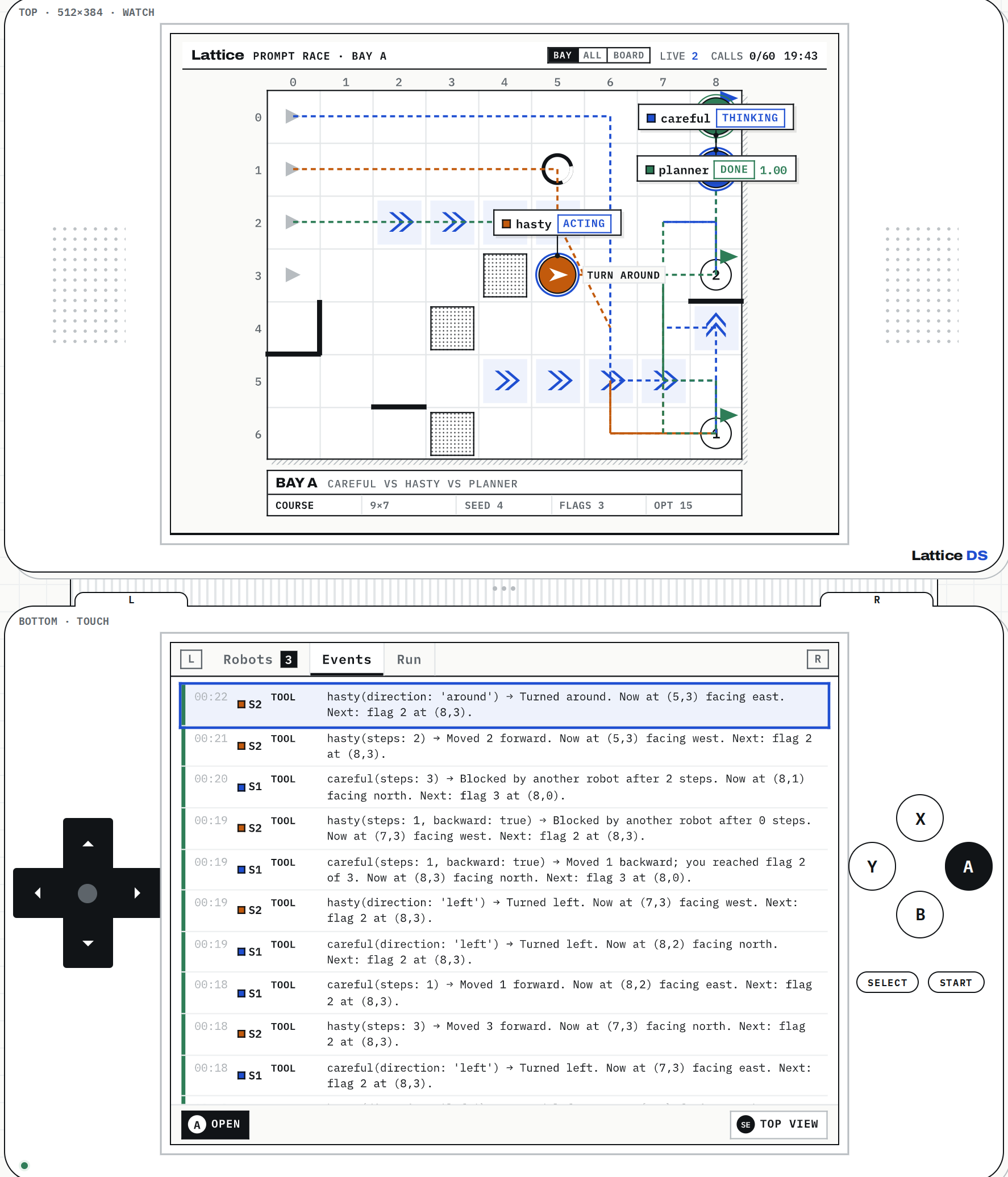

The Events tab on the bottom screen: a timestamped log of each robot's tool calls and their results
The Events tab on the bottom screen: a timestamped log of each robot's tool calls and their results

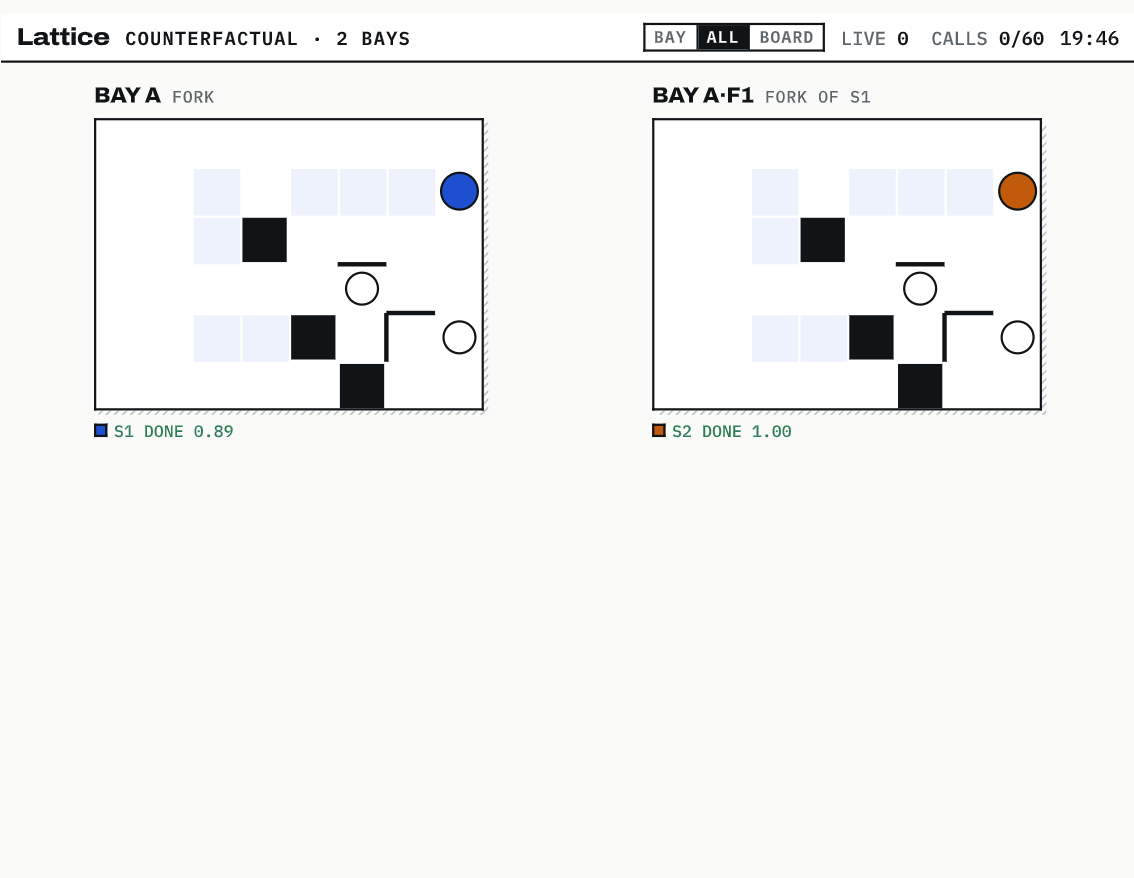

Fork a counterfactual on the top screen: bay A and its fork A-F1 continue from the same board state with different strategies
Fork a counterfactual on the top screen: bay A and its fork A-F1 continue from the same board state with different strategies

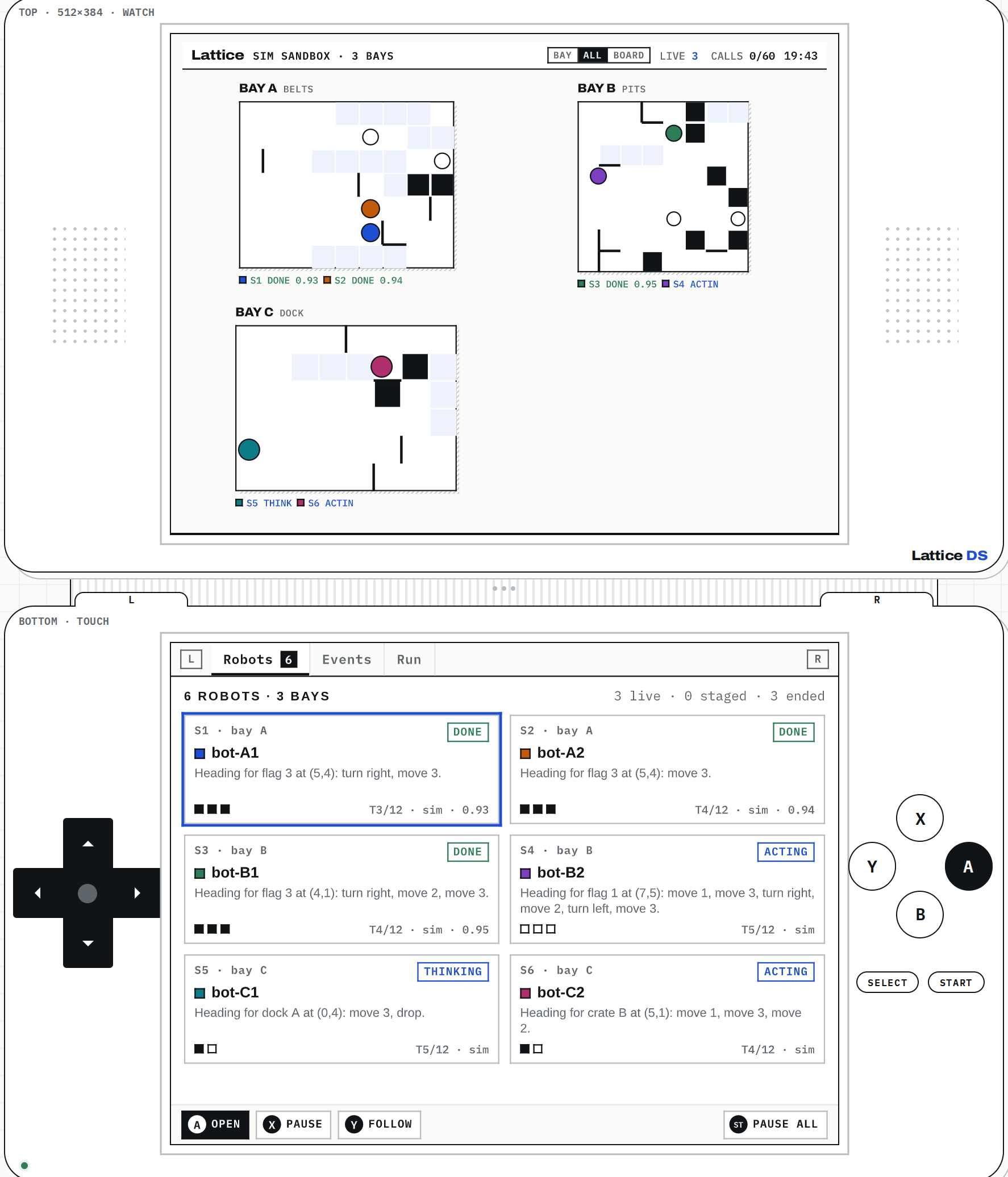

The handheld running Sim sandbox: three bays on the top screen and six robot cards on the bottom screen
The handheld running Sim sandbox: three bays on the top screen and six robot cards on the bottom screen

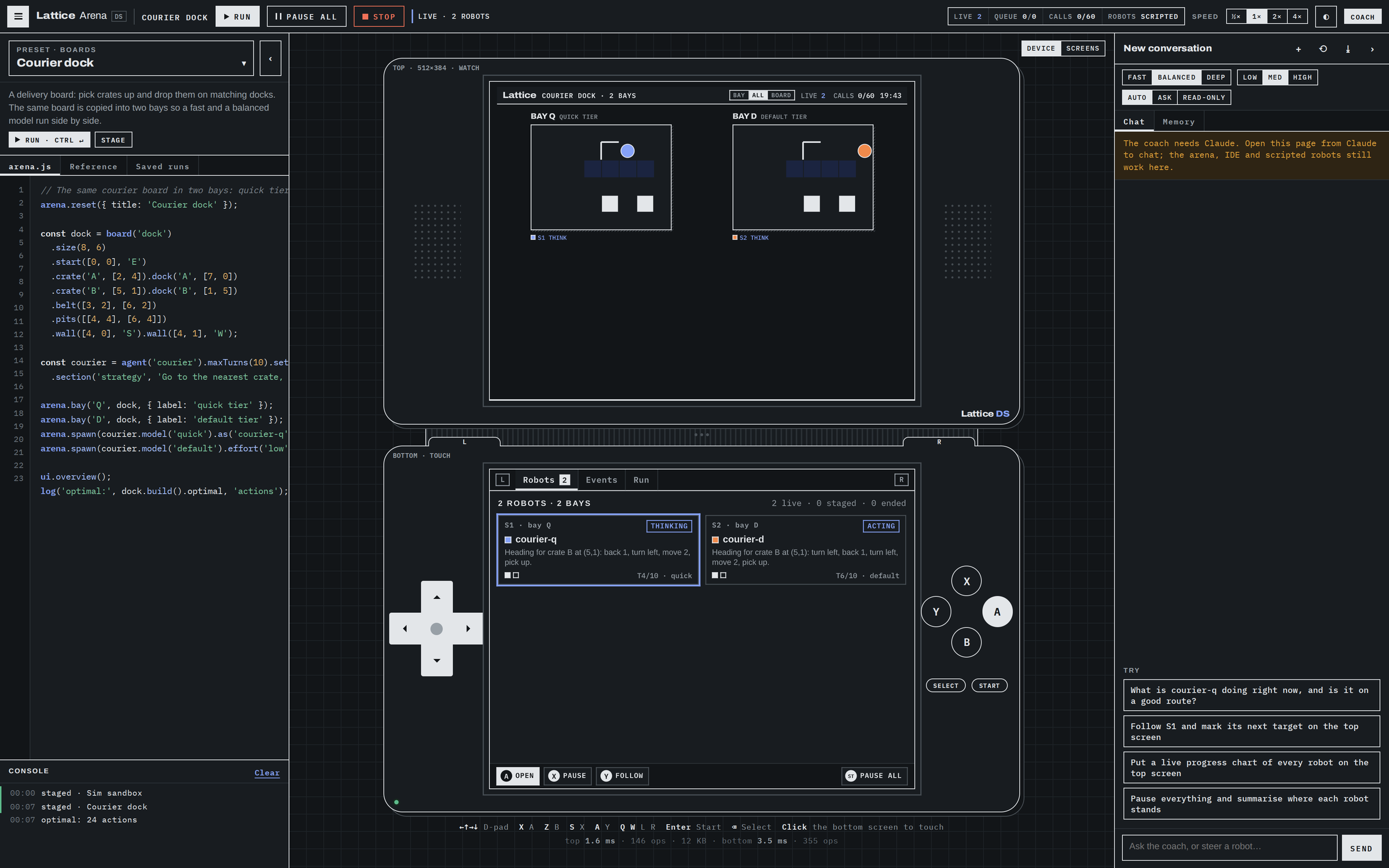

Courier dock in dark mode, with the script beside the dark handheld
Courier dock in dark mode, with the script beside the dark handheld

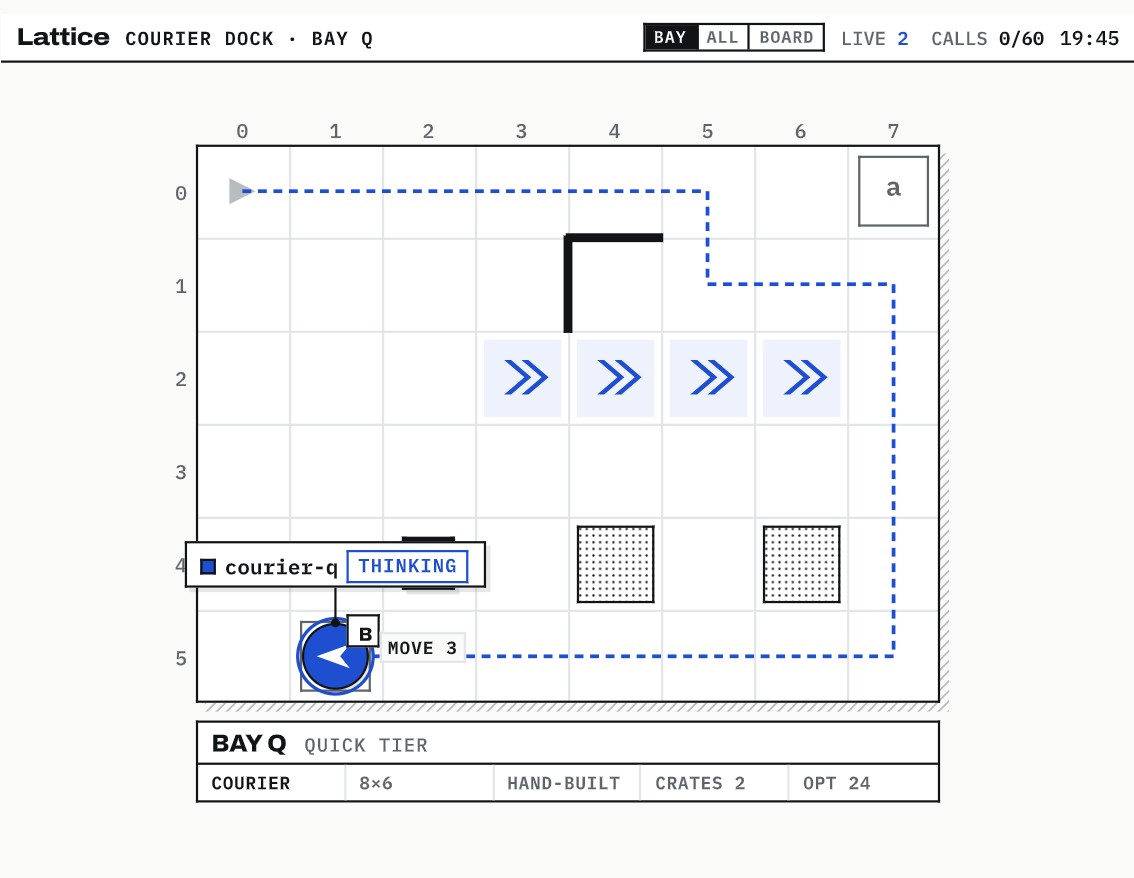

Close-up of the top screen on the Courier dock board: a robot heading for crate B, with docks a and b
Close-up of the top screen on the Courier dock board: a robot heading for crate B, with docks a and b
